DMP Supported Intrusion & Access Control Management

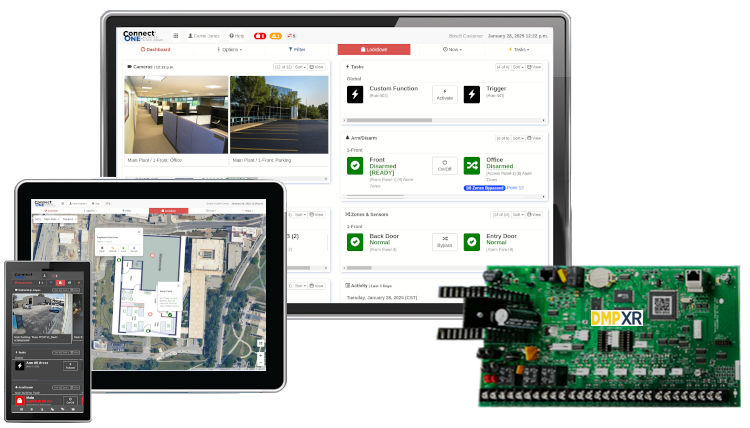

Connect ONE® Manage all your DMP locations from one unified dashboard

Verified DMP Integration

What's specific to the DMP integration

Direct cloud integration with DMP's XR, XF and XT panels, with no on-site network changes

32Areas per panel
10,000User codes per panel
96Access doors per panel

Persistent
Connection

XR, XF, & XT75 panels hold a constant outbound connection to Connect ONE. Events stream in real time and commands execute instantly.

Integrated
Intrusion & Access

One hardware platform to support integrated functionality of intrusion and access control.

Instant
Lockdown

Trigger a panel-wide lockdown across doors and areas from the same screen — no separate system required.

Real Access
Control

DMP's native access capacity covers a handful of doors — fine for a small install, a limit for a growing one. Connect ONE turns the panel into a genuine access control platform, without replacing the hardware already on the wall.

Compatible Panels & Equipment

Minimal panel programming, no inbound network configuration

  • Panels: DMP XR, XF and XT series control panels, including the XF6 addressable fire panel
  • Connection: persistent outbound connection from the panel to Connect ONE, over the customer's existing internet
  • Setup: no inbound ports, no firewall reconfiguration, minimal panel programming
  • Monitor: real-time intrusion and access activity, plus full status
  • Control: arm, disarm, zone bypass, door lock/unlock, outputs, lockdown, & z-wave thermostats and lighting
  • Manage: user codes and access cards, system profile permissions, scheduling, & holidays, and output groups
  • Add-on: the Connect ONE Access Expander (ACCEXP-XR) is available for DMP XR panels
Contact us to inquire about becoming a dealer.
DMP XR control panel connected to the Connect ONE Access Expander Click to enlarge

DMP XR panel with the optional Access Expander

The Real Comparison

Why not just use DMP's own app?

It was built to manage one panel — not a growing account.

Built to Stop,
Not to Grow

DMP's app is a single-panel tool, so there's a natural ceiling on what it can become. Connect ONE grows with the account: more sites, more systems, more visibility, with no wall to hit.

Branding Isn't the
Differentiator

Some manufacturer apps can carry your logo. That changes how the app looks to your customer — not who's behind it. A support ticket or feature request on a rebranded app still moves through the manufacturer's queue, on their timeline, not yours.

The Real Wall:
Multi-Location

A few manufacturer apps stretch to a couple of sites. None offer a true multi-location dashboard — one user added once and pushed everywhere, one report across every site. That's the ceiling Connect ONE was built to remove.

The panel is DMP's. The customer relationship is yours. Connect ONE gives you a platform built to grow with the account instead of stopping at the panel.

Everything else Connect ONE does with your DMP system

These capabilities work the same way on every supported system, so they are described once, in one place.
