Wallet Cards

Simplified Management of NFC Wallet Cards for Apple & Google

NFC Wallet Card

The Connect ONE Wallet Card Solution enables your access card on your mobile device. Use your Apple Wallet or Google Wallet to access doors — just like everyday transactions. No apps, no need to unlock the device, and it continues to work even when the phone battery is low. Simply hold your phone to a Wavelynx reader to gain access.

Works with Any Access System

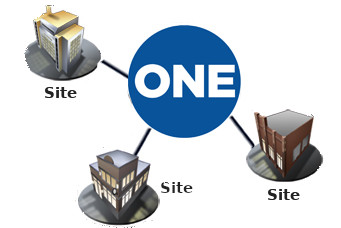

Connect ONE handles wallet card provisioning and can transfer the associated card number into any access system.

Secure Deployment Validation

Before activation in the Wallet, deployments are securely validated using optional two-factor authentication and/or your organization’s Single Sign-On (SSO) identity provider.

No App Required

No third-party app required for provisioning — users receive an email or text with a link to add the card directly to their wallet.

Seamless Management

All cards are managed directly within the Connect ONE platform alongside your existing access credentials.

Your Branding

Wallet cards are branded with your company logo

Add to Apple Wallet Add to Google Wallet

Equipment Required: Wavelynx Ethos Readers

Multi-technology readers supporting Proximity, Smart, NFC & BLE — purpose-built for mobile wallet credentials.

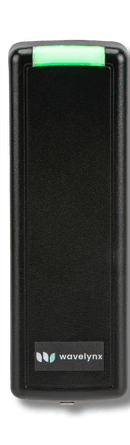

Wavelynx Ethos ET10 Mullion Reader

ET10-7WS

Mullion Model

  • Dimensions: 5.1″ × 1.7″ × 0.71″
  • Current: 105 mA avg / 145 mA peak
  • Warranty: Lifetime

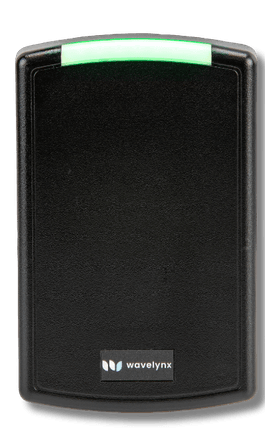

Wavelynx Ethos ET20 Single Gang Reader

ET20-7WS

Single Gang Model

  • Dimensions: 5.1″ × 3.25″ × 0.71″
  • Current: 120 mA avg / 170 mA peak
  • Warranty: Lifetime

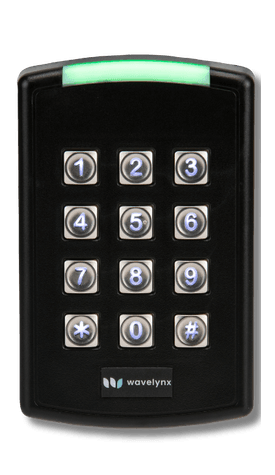

Wavelynx Ethos ET25 Keypad Reader

ET25-7WS

Keypad Model

  • Dimensions: 5.1″ × 3.25″ × 0.71″
  • Current: 145 mA avg / 195 mA peak
  • Warranty: 3 Years
  • NFC: Apple Wallet, Google Wallet
  • BLE: Bluetooth Low Energy
  • MIFARE: DESFire EV2 & EV3
  • Proximity: FSK and ASK legacy credentials
  • Interface: OSDP Secure Channel
  • Also supports: Wiegand
  • Power: 5–16 VDC
  • Security: EAL6+ Cryptographic Module
  • Temp Range: UL tested −35° to 66°C
  • Environment: UL294 Suitable for Outdoor Use
  • Tamper: Accelerometer-based detection
  • LED/Audio: Tri-state LED light bar & beeper
  • OSDP: Auto-Detect & remote firmware upgrades
  • Credentials: LEAF enabled, MyPass compatible
  • Mounting: Indoor/outdoor
  • Origin: Made in USA

Wavelynx Ethos Product Details
