Fire Alarm Event Data Capture

See a fire event unfold in real time — every zone, every point, the moment it happens

Edwards, Firelite, Notifier, Mircom, and other compatible fire platforms

Unified Dashboard for Security & Fire Events

When a fire alarm activates, every second of clarity matters. A single dashboard brings security and fire events together, with instant notification by email, text message, or app push and integration to mass notification systems — so the right people know immediately, not after the fact.

Simple Integration

Integration is straightforward — connect the fire alarm printer output to the Network Gateway's RS-232 port for full-data event capture. Supported on Edwards, Firelite, Notifier, and Mircom control panels. DMP XF6 addressable fire panels integrate directly with full control and user programming capabilities. Contact us about additional manufacturer integrations.

Capabilities

Full-Data Event Capture

Capture complete event data from your fire alarm control panels including zone details, point information, and event timestamps.

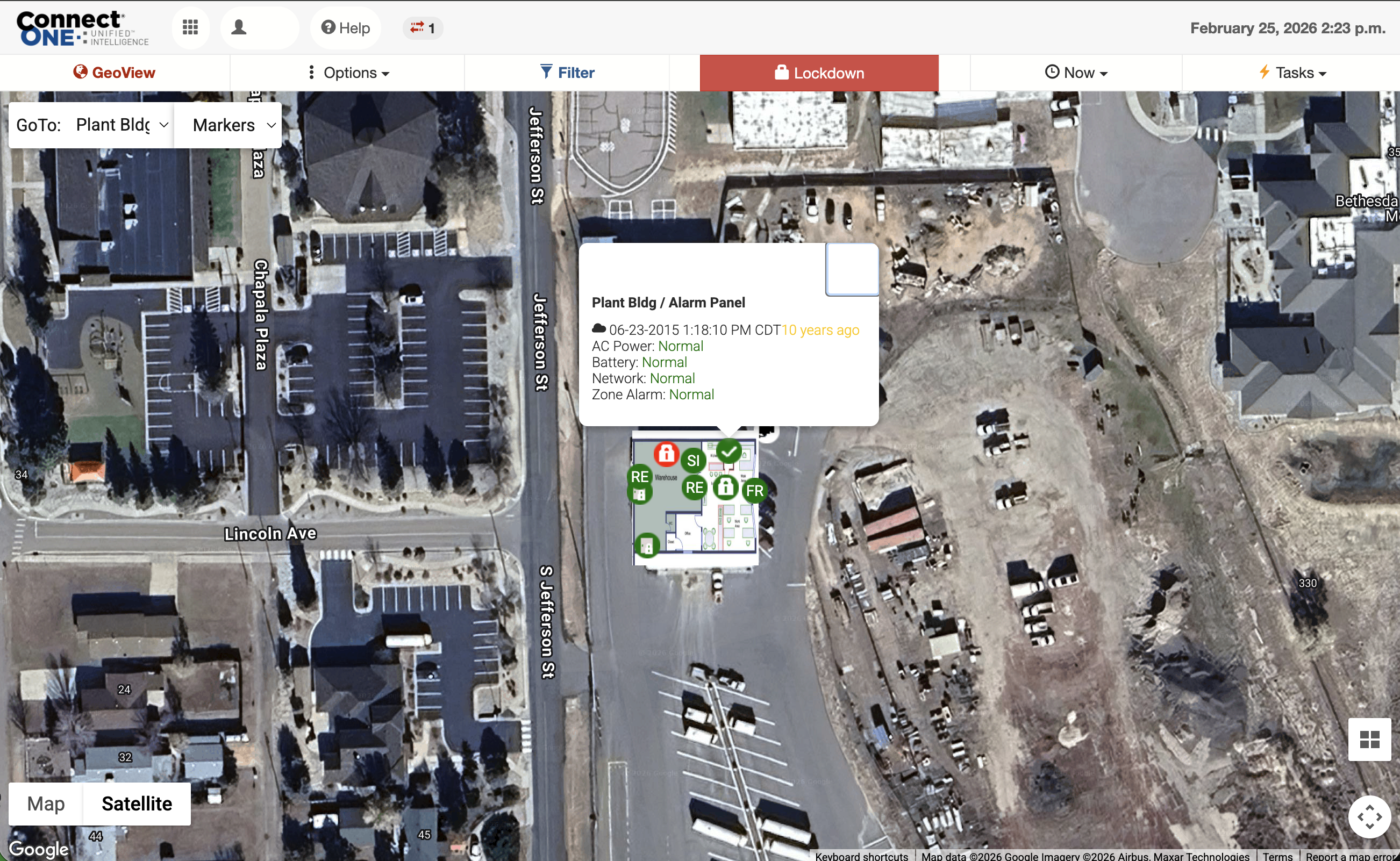

GeoView Mapping

Create virtual zones and points and plot them on GeoView satellite imagery or floorplan maps. Status updates automatically through data capture from the fire alarm printer output for real-time visual identification.

Automated Reports

Generate automated reports and receive instant notifications via email, text message, or app push.

Onscreen Alerts

Real-time onscreen alerts with audible notifications mean a fire event can't go unnoticed, even in a busy control room.

Video Integration

See what's actually happening during a fire event with live video alongside the alarm — situational awareness when it matters most.

Mass Notification

Get everyone moving together during an emergency, with mass notification integration via CAP messaging for coordinated response.

Environmental Monitoring

Use the same Network Gateway for Temperature, Humidity, & CO2 Monitoring to consolidate your monitoring.

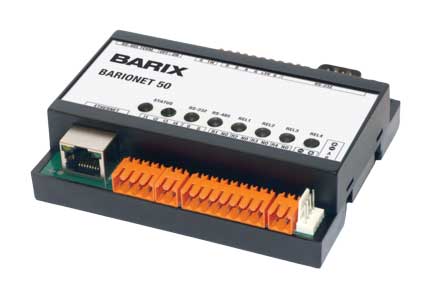

Equipment Required: Network Gateway

  • Connectivity: RJ45 10/100 Mbps Ethernet
  • Serial Port: RS-232 for fire alarm printer output capture
  • Power: 9–30 VDC, 4 Watt max
  • Supervision: 2 onboard inputs for AC fail & low battery monitoring
  • Sensors: Up to 50 temperature probes & 6 multi-sensors via cat5e daisy-chain
  • Mounting: DIN-rail mount
  • Operating Temp: 0°C to +50°C (32°F to 104°F)
  • Enclosure: Plastic housing

Download Full Spec Sheet
