New Multi-Sensors Supported for Temperature, Humidity, & Carbon Dioxide!
The Network Gateway accepts up to 6 combination carbon dioxide/temperature/humidity sensors (all 6 connected sensors must be of the same type ex) all G01, HUM, or CO2 - see sensors below), and the same gateway can also accept multiple 1-wire temperature probes plus a fire alarm panel printer connection, at the same time. The multi-sensors use simple daisy-chain wiring on cat5e (100m – 200m total length). No calibration necessary and readings will not vary based on wire distance since the sensors report the reading via data transmission rather than by resistive changes. There may be onsite annunciation of Alarms & Troubles by wiring Network Gateway relay outputs to a local sounder or alarm control panel upon temperature/humidity alarms and read troubles including a quick notification for Loss of Communication via a dedicated failsafe relay output which turns off after 15 minutes of no communication to the Connect ONE cloud.
HUM Multi-Sensor (1-week lead time)
Temperature (Ext. Probe)
Accuracy: +/‐ 0.2C @ 5-60°C
Range: -33°C to +70°C
Humidity (Ext. Probe)
Accuracy: +/- 2% RH @ 25°C
Range: 0-100%RH
Carbon Dioxide
No Sensor for CO2
External Power Supply
Required, 15-24V AC/DC, 2W typical
Operating Conditions
-30-70°C, 0-95%RH, non-condensing
100% condensing @ External Probe
Application
Monitor Rooms, Freezers & Coolers

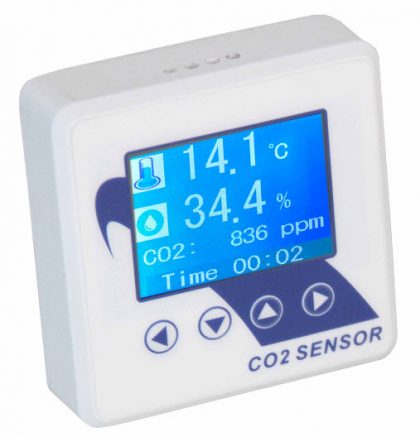

C02 Multi-Sensor (1-week lead time)
Temperature
Accuracy: +/‐ 0.5C @ 25°C
Range: -40°C to +150°C
Humidity
Accuracy: +/- 3% RH @ 25°C
Range: 0-100%RH
Carbon Dioxide
Accuracy: +/-70ppm +5%
Range: 0 – 4000ppm
External Power Supply
Required, 15-24V AC/DC, 2W typical
Operating Conditions
-30-70°C, 0-95%RH, non-condensing
Application
Monitor Rooms

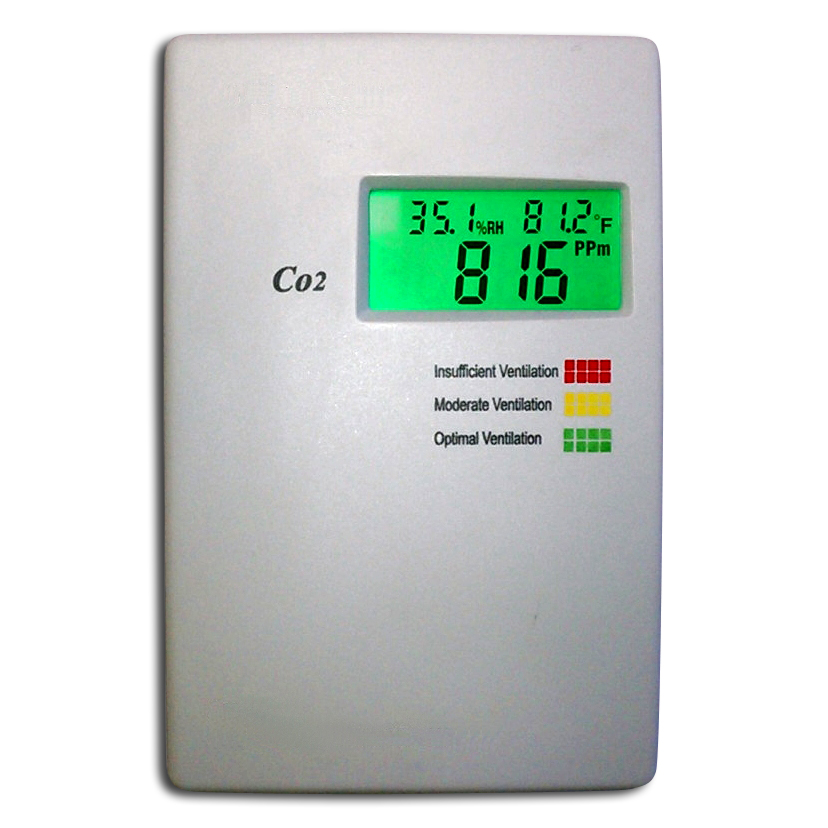

G01 Multi-Sensor (special order only)
Temperature
Accuracy: +/‐ 0.4C
Range: 0°C to +50°C
Humidity
Accuracy: +/- 3% RH
Range: 20-70%RH @ 25°C
Carbon Dioxide
Accuracy: +/-40ppm +3%
Range: 0 – 2000ppm
External Power Supply
Required, 24V AC/DC, 1.8W max, 1.2W average
Operating Conditions
0-50°C, 0-95%RH, non-condensing
Application
Monitor Rooms
Pricing for sensors is available in the Price Guide located on the Home tab of the Dealer Application.
|
